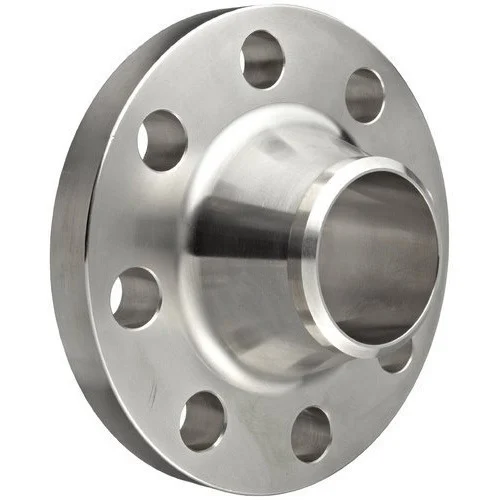

Gopal Forge Industries™ manufactures ASTM A182 F91 Flanges for high-temperature and high-pressure piping systems where strength, dimensional accuracy, and dependable performance are essential. ASTM A182 F91 is a chromium-molybdenum alloy steel grade commonly selected for demanding power-generation and process applications. Our manufacturing approach focuses on controlled forging, accurate machining, consistent flange dimensions, and careful inspection so that the finished components can integrate reliably with valves, pipes, pressure equipment, and other pipe fittings. Depending on project requirements, flange configurations can include Weld Neck, Slip On, Blind, Socket Weld, Threaded, and other engineered designs.
ASTM A182 F91 Flanges, ASTM A182 F91 Flanges Manufacturers, ASTM A182 F91 Flanges Suppliers, ASTM A182 F91 Flanges Stockists, ASTM A182 F91 Flanges Exporters
As experienced exporters, Gopal Forge Industries™ supplies ASTM A182 F91 Flanges for industrial projects requiring dependable alloy-steel components across international markets. F91 material is particularly valued in elevated-temperature service because its chromium and molybdenum alloying system provides a useful combination of strength and resistance to degradation under demanding operating conditions. These flanges can be incorporated into steam, boiler, turbine, thermal power, petrochemical, and process piping arrangements. Our export-oriented approach emphasizes suitable packing, traceability, documentation, dimensional consistency, and coordination with project specifications, helping customers source components for complete industrial piping solutions with greater confidence.
Gopal Forge Industries™ serves as a reliable supplier of ASTM A182 F91 Flanges for applications where material integrity and engineering consistency are important. These flanges are used to create detachable, pressure-rated connections between piping components and equipment, making correct dimensions and compatibility especially important during installation. F91 flanges can work alongside alloy-steel pipe, valves, fittings, and fabricated piping assemblies designed for elevated-temperature service. Customers can specify flange dimensions, pressure class, facing, bore, schedule compatibility, and applicable project requirements so that the supplied components are aligned with their intended installation. Related products may include buttweld fittings, alloy steel fittings, forged components, and specialized pressure-piping accessories.
As stockists, Gopal Forge Industries™ supports procurement requirements for ASTM A182 F91 Flanges where project schedules demand efficient material availability and dependable product coordination. Maintaining suitable flange options can help engineering contractors, maintenance teams, EPC companies, and industrial buyers reduce delays associated with urgent replacement or construction requirements. F91 flanges are particularly relevant to systems exposed to elevated temperatures and pressures, including thermal power and steam-service installations. Selection should always consider the applicable ASME pressure class, pipe dimensions, temperature, service conditions, flange facing, and governing project standards. They can also be specified alongside products such as a carbon steel elbow, alloy steel elbows, valves, and other pressure-piping components.
Industrial suppliers of ASTM A182 F91 Flanges need to understand that these components are not selected only by nominal size. Service temperature, pressure, material grade, flange type, facing, wall thickness, joining method, and applicable standards all influence the correct specification. F91 is commonly associated with high-temperature alloy-steel service and therefore suits applications where ordinary carbon steel components may not provide the required performance. Gopal Forge Industries™ focuses on supplying components that support demanding engineering requirements while maintaining practical communication throughout procurement. For broader piping packages, F91 flanges may be combined with alloy steel pipe fittings, stainless steel elbow assemblies, valves, gaskets, fasteners, and fabricated piping systems.
ASTM A182 F91 Flanges Manufacturers in India, ASTM A182 F91 Flanges Suppliers in India, ASTM A182 F91 Flanges Stockists in India, ASTM A182 F91 Flanges Exporters in India
ASTM A182 F91 Flanges Specification
| Specification |
ASTM A182 F91 Flanges |
| Technical Description |
ASTM A182 F91 Flanges are forged alloy steel flanges manufactured from Grade F91 modified 9Cr-1Mo-V alloy steel. They offer high strength, excellent creep resistance, and reliable performance in high-temperature and high-pressure service. |
| Available Sizes |
Typically available from 1/2 inch to 24 inches according to ASME B16.5, with larger sizes available according to applicable dimensional standards and manufacturer specifications. |
| Standards |
ASTM A182 / ASME SA182; dimensions are commonly manufactured according to ASME B16.5 and, where applicable, ASME B16.47. |
| Material Grades |
ASTM A182 Grade F91 / UNS K90901, modified 9Cr-1Mo-V alloy steel. |
| Pressure Ratings |
Class 150, 300, 400, 600, 900, 1500 and 2500, subject to flange size, temperature, material group, and applicable pressure-temperature ratings. |
| Dimensions |
Outside diameter, thickness, bore, bolt-circle diameter, number of bolt holes, bolt-hole diameter, and flange height are determined according to the applicable ASME dimensional standard, flange type, size, and pressure class. |
| Applications |
Supercritical power plants, steam headers, main steam lines, boilers, refineries, petrochemical plants, heat exchangers, pressure vessels, and other high-temperature and high-pressure piping systems. |
ASTM A182 F91 Flanges Chemical Composition
| Grade |
Carbon (C) % |
Manganese (Mn) % |
Silicon (Si) % |
Phosphorus (P) % |
Sulfur (S) % |
Nickel (Ni) % |
Chromium (Cr) % |
Molybdenum (Mo) % |
Vanadium (V) % |
Niobium (Nb) % |
Nitrogen (N) % |
| ASTM A182 F91 |
0.08–0.12 |
0.30–0.60 |
0.20–0.50 |
0.020 max. |
0.010 max. |
0.40 max. |
8.00–9.50 |
0.85–1.05 |
0.18–0.25 |
0.06–0.10 |
0.03–0.07 |
ASTM A182 F91 Flanges Mechanical Properties
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Reduction of Area (%) |
Brinell Hardness (HBW) |
| ASTM A182 F91 |
620 min. |
415 min. |
20 min. |
40 min. |
190–248 |
COMPANY CATALOGUE
Download Our Product Catalogue
Explore our complete range of products, specifications,
materials, manufacturing capabilities and technical
information in our latest product catalogue.
Related Products
FAQ's
ASTM A182 F91 Flanges are forged alloy steel pipe flanges manufactured from ASTM A182 Grade F91 modified 9Cr-1Mo-V alloy steel. They offer high strength, excellent creep resistance, and reliable performance in high-temperature and high-pressure applications.
Common
ASTM A182 F91 Flange types include:
- Weld Neck Flanges
- Slip-On Flanges
- Blind Flanges
- Socket Weld Flanges
- Threaded Flanges
- Lap Joint Flanges
ASTM A182 F91 Flanges are commonly manufactured according to ASME B16.5 and, where applicable, ASME B16.47. Available pressure classes depend on the flange size, temperature, material group, and applicable pressure-temperature rating.
ASTM A182 F91 Flanges provide high tensile and yield strength, excellent creep resistance, and good long-term stability at elevated temperatures. Their modified 9Cr-1Mo-V alloy composition makes them suitable for demanding high-temperature steam and power-generation applications.
ASTM A182 F91 Flanges are commonly used in supercritical and ultra-supercritical power plants, boilers, steam headers, main steam piping, refineries, petrochemical facilities, heat exchangers, pressure vessels, and other high-temperature and high-pressure industrial systems.
Application of ASTM A182 F91 Flanges
Latest Price List of ASTM A182 F91 Flanges
The latest price of ASTM A182 F91 Flanges varies according to flange type, nominal diameter, pressure class, facing, schedule or bore requirements, quantity, machining specifications, testing, certification, and prevailing alloy-steel raw-material costs. Suppliers generally quote these flanges on a project-specific basis because F91 alloy steel carries different processing and inspection requirements compared with standard carbon-steel grades. For an accurate commercial quotation, buyers should provide size, class, flange type, quantity, applicable specification, testing requirements, delivery location, and documentation requirements. Gopal Forge Industries™ can evaluate these details to provide a commercially relevant quotation based on current industrial market conditions rather than relying on a generic price indication.
