Forged Fitting
Forged fittings

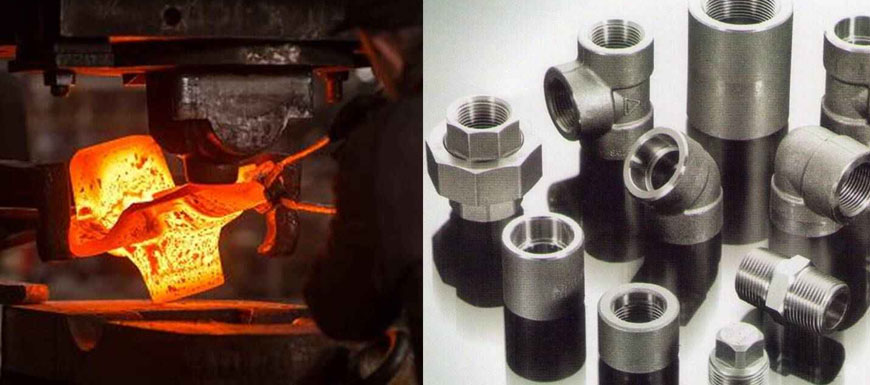

A forged fitting is a high-strength mechanical component used to connect, redirect, or terminate pipes in various piping systems. Manufactured through the process of forging, which involves shaping metal under high pressure, these fittings offer superior durability, toughness, and resistance to stress compared to cast or welded alternatives. Forged fittings are commonly made from carbon steel, stainless steel, and alloy steel, making them suitable for use in demanding environments such as high pressure, high temperature, and corrosive conditions.
Widely used in industries like oil and gas, petrochemical, power generation, and chemical processing, forged fittings conform to international standards such as ASME, API, and MSS to ensure quality and reliability. Their precise manufacturing process results in excellent dimensional accuracy and consistent performance, making them ideal for critical applications where leak-proof and robust connections are essential for system integrity and safety.
Manufacturing Standards
| Specification | Description |
|---|---|
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel Pipe Fittings, Screwed and Socket-Welding for the Petroleum Industry |
Socket weld fittings
Socket weld fittings are specialized pipe fittings used to connect pipes in a secure and leak-resistant manner by inserting the pipe into a recessed socket and welding around the joint. These fittings are widely used in high-pressure and high-temperature piping systems across industries such as oil and gas, chemical, power plants, and manufacturing. Made typically from materials like carbon steel, stainless steel, and alloy steel, socket weld fittings provide excellent strength and corrosion resistance to ensure long-lasting and safe pipe connections.Common types of socket weld fittings include Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, and Outlet. These fittings come in various sizes and pressure ratings to accommodate different piping requirements. Due to their ease of installation and robust connection, socket weld fittings are preferred for permanent piping assemblies where leak-proof joints and structural integrity are paramount.
| Specification | Description |
|---|---|
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Threaded Pipe Fittings
Threaded pipe fittings are essential components used to connect, control, or terminate sections of pipe in various piping systems. These fittings provide reliable, leak-proof connections and are widely used in industries such as construction, oil and gas, chemical, and manufacturing. Made from durable materials like carbon steel, stainless steel, and alloy steel, threaded fittings are designed to withstand high pressure, temperature, and corrosive environments, ensuring the structural integrity of piping systems.Common types of threaded pipe fittings include Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, and Swage Nipple. These fittings are available in various sizes, thread types, and pressure ratings to meet specific application requirements, providing versatility and ease of installation in both permanent and temporary piping systems.
| Specification | Description |
|---|---|
| Pressure Class | 2000LBS, 3000LBS, 6000LBS |
| Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Pipe nipples
Pipe nipples are short lengths of pipe with external threading on both ends, used to connect two other fittings or pipes in a plumbing or piping system. They are commonly made from durable materials such as carbon steel, stainless steel, and brass to ensure strength and corrosion resistance in various environments. Pipe nipples are widely used in construction, oil and gas, chemical, and industrial applications where secure and leak-proof connections are essential.Available in various sizes, lengths, and thread types like NPT (National Pipe Thread), pipe nipples are designed to provide easy installation and maintenance of piping systems. Their properties such as high tensile strength and durability make them suitable for handling high pressure and temperature conditions. Pipe nipples play a critical role in maintaining the integrity and efficiency of fluid transport systems across multiple industries.
| Specification | Description |
|---|---|
| Pipe Nipples – Production Range | 1/8″ – 4″ |
| Round Nipples Size | 1/8″ – 4″ |
| Round Nipples Standard | BS3799 |
| Hexagon Nipples Size | 1/8″ – 2″ |
| Hexagon Nipples Standard | BS3799 |
| Swaged Nipple Size | 1/8″ – 2″ |
| Swaged Nipple Standards | SH/T3419, MSS SP 95-2006 |
| Products | Brass Pipe Nipples, Stainless Steel Pipe Nipples, Carbon Steel Pipe Nipples, Aluminum Pipe Nipples, Welded & Seamless Pipe Nipples, Threaded Pipe Nipples, Concentric Swaged Nipple, Eccentric Swaged Nipple, Both End Threaded Nipples, One End Threaded Nipples |
| Stainless Steel Pipe Nipples | 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L, 2205 Duplex |
| Other Materials | Carbon Steel, Alloy Steel, Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze, Titanium, Aluminium |
| Copper Nickel Pipe Nipples | CuNi10Fe1Mn, CuNi30Mn1Fe, Cupro nickel |
Pipe Outlet Fittings
Pipe outlet fittings are essential components used to connect pipes to various equipment, valves, or other piping systems, enabling smooth flow direction changes or system branching. These fittings are widely utilized in plumbing, oil and gas, chemical, and industrial applications to ensure secure, leak-proof connections. Made from durable materials like carbon steel, stainless steel, and alloy steel, pipe outlet fittings are designed to withstand high pressures, temperature fluctuations, and corrosive environments.Manufactured according to international standards such as ASTM, ANSI, and ISO, pipe outlet fittings offer reliable performance and compatibility across various piping systems. Their properties, including corrosion resistance, high tensile strength, and ease of installation, make them vital in maintaining the integrity and safety of mechanical assemblies. These fittings come in multiple forms such as threaded, welded, or flanged options to cater to diverse application requirements.
| Specification | Description |
|---|---|
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.11 | Forged Fittings Socket – Welding and Threaded |
| MSS SP-97 | Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends |
| Stainless Steel Pipe Outlets | Welding Outlets, Socket Weld Outlets, Threaded Outlets (ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L) |
| Alloy Steel Outlets | Welding Outlets, Socket Weld Outlets, Threaded Outlets (ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91) |
| Carbon Steel Outlets | Welding Outlets, Socket Weld Outlets, Threaded Outlets (ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70) |
| Duplex Steel Outlets | Welding Outlets, Socket Weld Outlets, Threaded Outlets (ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61) |
| Low Temperature Carbon Steel Outlets | Welding Outlets, Socket Weld Outlets, Threaded Outlets (A350 LF3/A350 LF2) |
Swage Nipple/Pipe Swage
A Swage Nipple or Pipe Swage is a type of pipe fitting used to connect pipes of different diameters by reducing the size of the pipe in a smooth and secure manner. These fittings are essential in plumbing, oil and gas, chemical, and industrial piping systems where a seamless transition between pipe sizes is required to maintain flow efficiency and pressure integrity. Swage nipples are commonly made from robust materials like carbon steel, stainless steel, and alloy steel to withstand high pressures and corrosive environments.Swage nipples are manufactured according to strict industry standards such as ASTM, ANSI, and ISO to ensure reliable performance and compatibility with various piping systems. Their properties such as high tensile strength, corrosion resistance, and durability make them ideal for critical applications in oil refineries, chemical plants, and power generation facilities. Additionally, surface finishes like galvanizing or electropolishing may be applied to further enhance resistance against harsh environmental conditions.
| Specification | Description |
|---|---|
| Size | 1/8” to 8”, DN8 to DN200 |
| Type | Concentric Swage Nipples, Eccentric Swage Nipples |
| Dimensions | MSS SP-95-2006, BS 3799 |
| Raw Materials | A106 Gr. B Seamless Pipes, A105/A105N Bars, A182 304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars |
| Material Specifications | ASTM A105, A350 LF2, ASTM A182 (F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91) |
| Connection Ends | PBE: Plain both ends, BBE: Bevel both ends, TBE: Thread both ends, PSE: Plain small end, BSE: Bevel small end, TSE: Thread small end, PLE: Plain large end, BLE: Bevel large end, TLE: Thread large end |
| Thickness | Standard, Extra Heavy, Schedule 160, or Double Extra Heavy |
| Ends | Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification |
| Test Certificates | EN 10204 3.1, Raw Material Certificates Available, Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs |
| Material Finish | Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of Stainless Steel Swage Nipples |
